Six-Circuit Scavenge Pump

Opposed-Piston Diesel Engine Oil Scavenge | Leading Diesel Engine Manufacturer

P-310, 310-201-X, 310-251-X

Features & Benefits

Our customer chose Cascon to support their custom pump needs as they develop an advanced opposed-piston diesel engine for military applications.

The single-housing, six-circuit pump was designed to fit precisely within the restrictive space available within the engine.

  • One-piece aluminum housing for durability, reliability and light weight
  • Direct manifold mount
  • Sintered-metal gerotor technology
  • Unique spline drive
  • Journal bearings for long life

Performance Parameters

Part Number
310-201-X, 310-251-X
Application Fluid
Engine Oil (Various Weights - 15w40)
Drive Type
Mechanical
Pump Type
Gerotor
Size
25.6 x 3.5 x 3.5 (inches)
Weight
26.4 lbs
Circuits
Max Flow Max Pressure Operating Speed
Inlet Circuit #1, 16.9 cc/rev 11.0 gpm 29.0 psi 3845 rpm
Inlet Circuit #2, 16.9 cc/rev 11.0 gpm 29.0 psi 3845 rpm
Inlet Circuit #3, 16.9 cc/rev 11.0 gpm 29.0 psi 3845 rpm
Inlet Circuit #4, 16.9 cc/rev 11.0 gpm 29.0 psi 3845 rpm
Inlet Circuit #5, 4.2 cc/rev 3.8 gpm 29.0 psi 3845 rpm
Inlet Circuit #6, 16.9 cc/rev 11.0 gpm 29.0 psi 3845 rpm
Number of Independent Circuits
6
Operating Speed, Maximum (rpm)
0 - 4,000
Circuit Flow Capacity, Maximum (lpm)
50
Circuit Pressure Rise (bar)
2

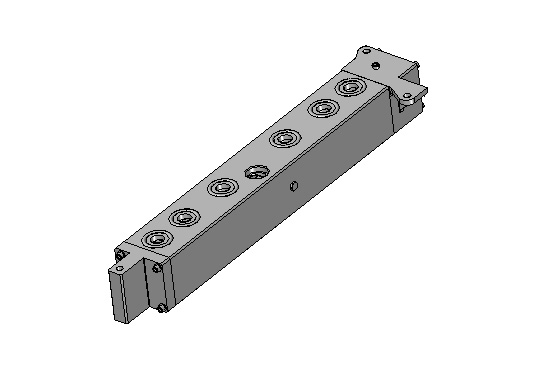

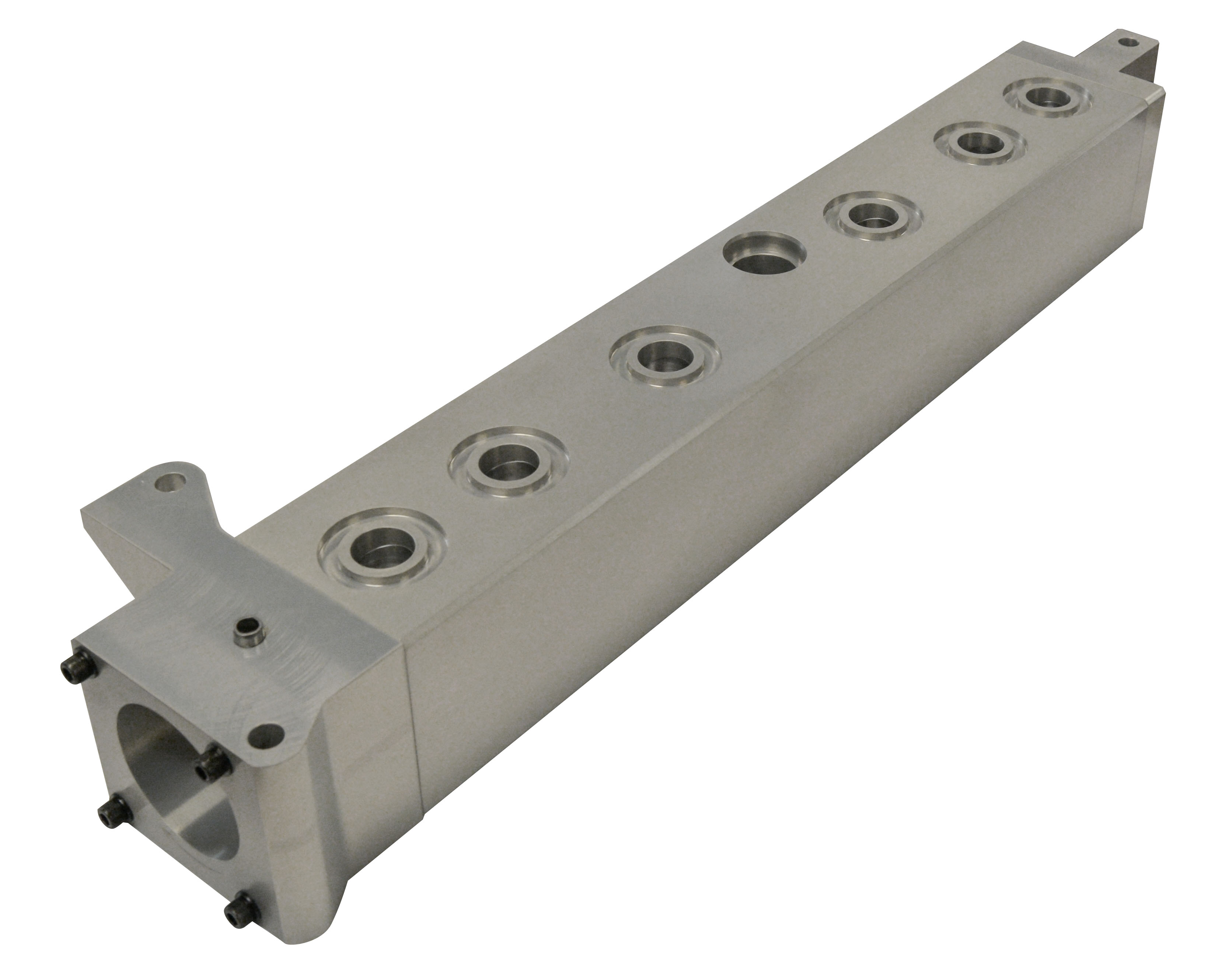

Six-Circuit Pump
