Series 100 High-Reliability Fuel and Coolant Pump
Fuel & Coolant Supply | Aircraft, eVTOL, UAV and other High-Reliability Industrial Applications
P-300, 100-XaXbXc-XdXeXf
Configure-to-Order
Features & Benefits
Based on technology developed by Cascon for space flight and military products, our Series 100 pump models provide an affordable aerospace-grade solution for your high-reliability fuel and coolant pumping application. Available with a range of displacements, fluid interfaces and control options, it can be configured to a particular system design. A variety of configurations can be built directly from stock.
Download/print a Product Datasheet for more information.
- Integral 28V Brushless DC Drive Motor
- Canned Rotor and Flooded Stator Options Available
- Integrated Pump Control
- Constant or Variable Flow/Speed
- Single-Piece 6061-T6 Aluminum Housing with Integral Mounting Points
- Gerotor and IGR Pump Rotor Options
Performance Parameters

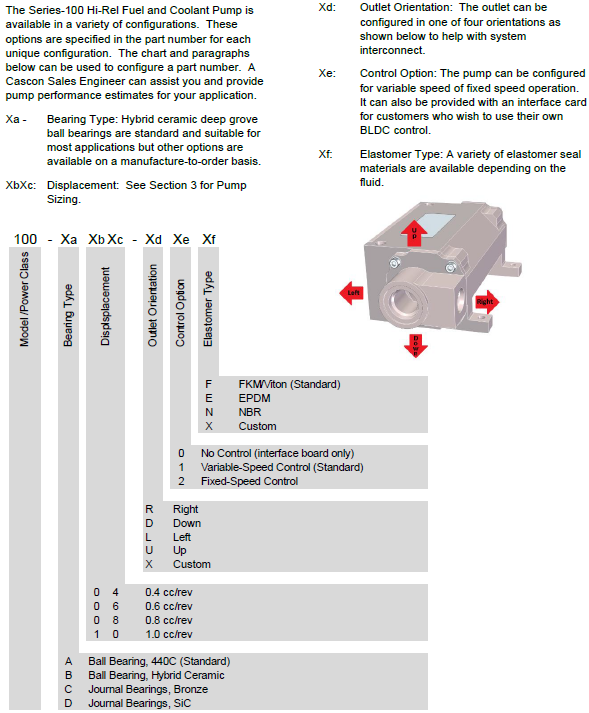

- Part Number
- 100-XaXbXc-XdXeXf
- Application Fluid
- Fuels, Heat Transfer Fluids, Other Low-Viscosity Fluids, Water/Glycol Solutions
- Supply Operating Voltage
- 28 VDC
- Drive Type
- Electric
- Pump Type
- Gerotor
- Size
- 2.6 W x 1.7 H x 5.0 L (inches)
- Weight
- 1.5 lbs
- Circuits
-
Circuit Max Flow Max Pressure Operating Speed Single-circuit 1.7 gpm 215 psi 6750 rpm - Supply Voltage Range (VDC)
- 22-32
- Speed/Flow Command Signal (V)
- 0-5
