Gear Driven Lubrication and Scavenge Pump
Power Transfer, Lubrication, Cooling and Scavenge for Diesel Aircraft Engine | World Leading General Aviation Engine Manufacturer
P-292, 292-D-201
Features & Benefits
Power Transfer, Lubrication, Cooling and Scavenge for Diesel Aircraft Engine | World Leading General Aviation Engine Manufacturer
Benefits & Features
This three-circuit pump keeps the engine lubricated and cool plus provides mounting and spline-drive for aircraft accessories.
- Light weight aluminum housings
- Integral relief valves
- Gear drive
- Two accessory mounting pads with spline drive per AND20000
- Hydrodynamic journal bearings
Performance Parameters
- Part Number
- 292-D-201
- Application Fluid
- SAE 10W40
- Drive Type
- Mechanical
- Pump Type
- Gear
- Size
- 8 x 8 x 5.33
- Circuits
-
Circuit Max Flow Max Pressure Operating Speed Lubrication Flow 15.5 gpm 80 psi 3200 rpm Cooling Circuit Flow 15.5 gpm 80 psi 3200 rpm Scavenge 6 gpm psi 3200 rpm - Fluid
- SAE 10W40
- Operating Speed (rpm)
- 500 - 3,200
- Lubrication Flow (gpm)
- 15.5
- Lubrication Pressure Rise (gpm)
- 80
- Cooling Circuit Flow (gpm)
- 15.5
- Cooling Circuit Pressure Rise (psid)
- 80
- Scavenge Capacity (gpm)
- 6
- Fluid Temperature Range (°F)
- 20 - 240
- 2 X Accessory Drive Power (HP)
- 4.5

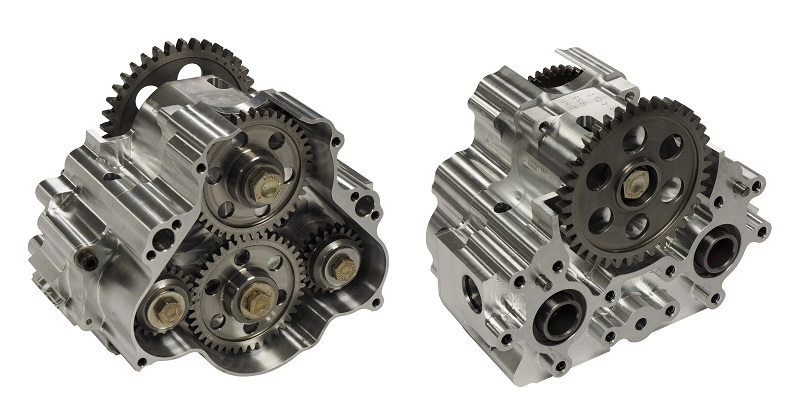

Gear Driven Pump Front and Back
